FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

Topic: How to manually run FDMEE System Maintenance Tasks: Maintain EBS GL Balances Table

Hi Friends,

This is the fifth post under Oracle Hyperion Financial Data Quality Management (FDMEE): System Maintenance Tasks blog series where we are going to cover the Maintain EBS GL Balances Table script.

If you have not yet read the previous four posts of this blog series, I would suggest you to go through them on below links to get a comprehensive picture of Oracle Hyperion Financial Data Quality Management (FDMEE) System Maintenance Tasks:

FDMEE: System Maintenance Tasks: Maintain FDMEE Data Tables
FDMEE: System Maintenance Tasks: Maintain ODI Session Data

In this fifth post, we will focus on the ‘Maintain EBS GL Balances Table’ task and will see how to manually execute ‘Maintain EBS GL Balances Table’ purge script.

Important Note:
  • This post has been written and associated activities have been demonstrated on Oracle Hyperion Financial Data Quality Management (FDMEE) version 11.1.2.4.210.
  • The demonstrating Hyperion environment has Oracle database server 12.2.0.2 (18c) as backend database.
  • There is no outage required on the Oracle Hyperion Financial Data Quality Management (FDMEE) application to execute these purge scripts. But it is advisable not to run any data loads during the purge activity.
  • Based on the data retention policy of your organization, you should pre-decide how many days of data you want to retain for Oracle Hyperion Financial Data Quality Management (FDMEE) EBS GL Balances Table.
  • Don't forget to take complete Oracle Hyperion Financial Data Quality Management (FDMEE) schema backup before attempting to run these purge scripts
Maintain EBS GL Balances Table

FDMEE is the EPM tool for data integration. Using FDMEE, ERP applications like Oracle EBS, PeopleSoft, SAP, etc. can be directly connected to your target Oracle Hyperion applications for data loading.

You would have seen FDMEE integration system having Oracle EBS General Ledger as data source system and HFM or Hyperion Planning as target applications. Data (GL_Balances) is extracted from Oracle EBS source system using ODI (FDMEE), moved to staging tables (AIF_EBS_GL_BALANCES_STG), and then eventually loaded to your target applications after transformation.

Maintain EBS GL Balances Table’ purge script maintains the AIF_EBS_GL_BALANCES_STG table in the FDMEE schema. EBS General Ledger balances contain a snapshot of the General Ledger balances and are deleted based on the General Ledger period. Maintain EBS GL Balances Table’ purge process determines the list of General Ledger periods between the start and end periods.

Following are the input parameters which you need to enter while running ‘Maintain EBS GL Balances Table’ purge script:
  • Source System
  • Start Period
  • End Period
Before proceeding further, with purging steps, I would suggest you to check and note down the pre-purge FDMEE schema size to see how much space has been freed up post purge activity.

Step-by-Step process to execute ‘Maintain EBS GL Balances Tables’ purge script

1- Log in to Workspace with Admin credentials.

2- Open Oracle Hyperion Financial Data Quality Management (FDMEE) console (Data Management) from Workspace and on the Workflow tab, under Other, select Script Execution:

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

3In Script Execution, and then in Custom Script Group, select System Maintenance Tasks.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

4- From the Scripts grid, select Maintain EBS GL Balances Table script and Click Execute.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

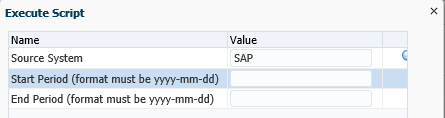

5It will prompt to enter the following parameter values on Execute Script screen.
  • Source System
  • Start Period
  • End Period
FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

6- Click on the search icon for Source System

Select any Source System name for which you want to purge data and click OK.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

7- Source System will be populated.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table


8- Now enter Start Period and End Period.

For example: If you want to purge all data from Nov-2016 to Oct-2017, then select Start Period and End Period as shown below:


FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table


9- Keep Execution mode selected as Online. The online method processes the report immediately.

Execution modes:

online  — ODI processes the data in sync mode (immediate processing).
offline — ODI processes the data in async mode (runs in background).

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

10- Optionally, If you want to schedule the purge script run rather than running it instantly, click on Schedule option and enter the scheduling details as per your requirement.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

11- If you want to instantly run the purge script, then directly click on OK (not on the Schedule option).

You will see a message informing the process ID of your script run as shown below:

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

12- To see the status of your script execution, click on the Process Details link under the Workflow tab—Monitor—Process Details

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

13- Above we can see our script with Process ID 8184 executed successfully.

Click on the Show button for Process ID 8184 to open the corresponding log file.

FDMEE: System Maintenance Tasks: Maintain EBS GL Balances Table

In the log file, look for the message "Maintain EBS GL Table: Completed" to confirm that the script has run successfully without any error. If you encounter any errors, troubleshoot them based on the cause mentioned in the log file.

You need to repeat all of the above steps for other Source System from where your FDMEE data extractions are running to target Hyperion applications.

Once you are done with running the Maintain EBS GL Balances Table purge script, you can check your Hyperion Financial Data Quality Management (FDMEE) schema size to see how much space has been cleared.

Here it’s important to note that after running the Maintain EBS GL Balances Table purge script, your DBA needs to do FDMEE tables reorganization activity in order to reclaim freed space.

Actually, when you delete the data from the Oracle tables, the data blocks will go onto the free list for that table. That free space will be used for the subsequent insert and update operations into the table. You need to perform table reorganization to reclaim that free space.

Note: Reorganization of tables requires outage in your Hyperion environment so you have to stop all your application services prior to the reorganization activity to be performed by your application DBA.

You may also need to ask your DBA team to 'Rebuild Indexes' in your Hyperion Financial Data Quality Management (FDMEE) database after performing the 'Tables Reorganisation' activity.

If you miss rebuilding indexes after tables reorganization activity, your FDMEE data load job may take longer than normal to complete.

Index rebuild becomes absolutely necessary especially when you delete millions of records from FDMEE tables as part of running FDMEE purge scripts because the corresponding indexes of those deleted records go in the unusable state after tables reorganization activity. Due to this bulk deletion of records, indexes become fragmented causing indexes taking more time to give the output and hence delaying your FDMEE data load job.

You will observe the following type of error during your FDMEE data load run if you do not rebuild database indexes after tables reorganization activity:
ORA-01502: index 'FDMEE_ODI.PK_AIF_EBS_GL_BALANCES_STG' or partition of such index is in unusable state.
Once both the DBA tasks (Tables reorganization + Rebuilding Indexes) are completed, compare pre and post purge size of your Hyperion Financial Data Quality Management (FDMEE) schema to see how much has the schema size reduced.

Maintain EBS GL Balances Table purge script can also be automated to run using Executescript batch file located in the folder:

<drive>\Oracle\Middleware\user_projects\epmsystem1_fdm\FinancialDataQuality.

We will cover the automation part in a separate post of this blog series.

That's all for this post.

I hope this article has helped you.
Your suggestions/feedback are most welcome.
Keep learning and Have a great day!!!

3 comments:

  1. Hi,

    Can we use the script on Source System Type as Oracle Data Source?

    ReplyDelete
    Replies
    1. Hi..You can select any Source System Name/Type which is available in AIF_SOURCE_SYSTEMS table of your FDMEE schema.
      Below query displays all the available source systems/types in your FDMEE setup:
      SELECT SOURCE_SYSTEM_NAME, SOURCE_SYSTEM_TYPE FROM AIF_SOURCE_SYSTEMS;

      Delete
  2. Hi can we load multiple Csv files using fdmee rule , at a time 12 months of data has to be loaded without the column format ! Can we load it ?

    ReplyDelete
